UHF vs. VHF: Understanding the Difference in Radio Frequencies
Share
UHF vs. VHF: Understanding the Difference in Radio Frequencies
When selecting a two-way radio, walkie-talkie, or communication device, one of the most critical decisions is whether to choose UHF (Ultra High Frequency) or VHF (Very High Frequency). Each frequency band has its unique characteristics, and understanding these can help you make an informed choice based on your specific communication needs.
What Are UHF and VHF?

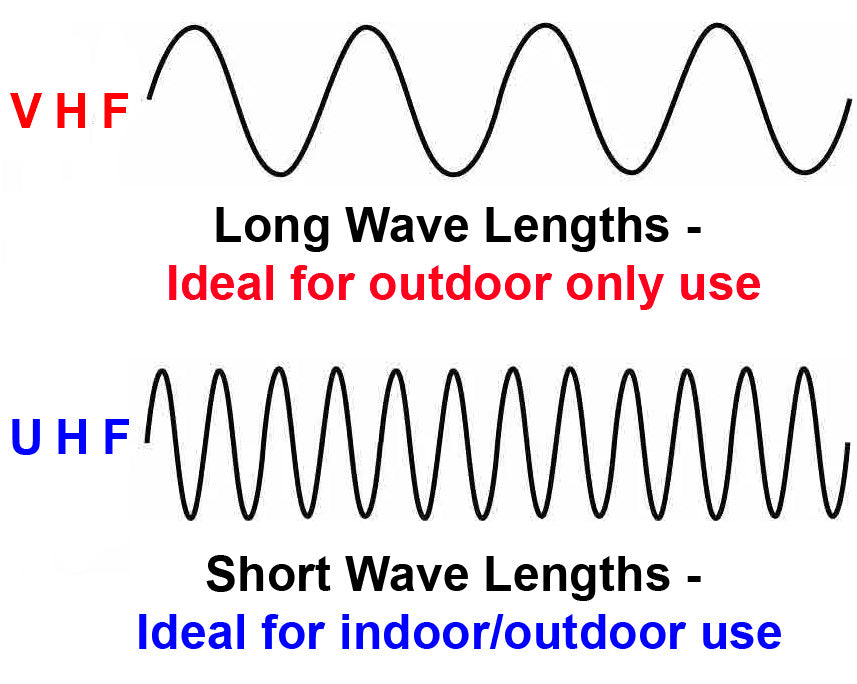

- VHF (Very High Frequency) operates in the 30 MHz to 300 MHz range. It is widely used for radio communications in outdoor and long-range environments.
- UHF (Ultra High Frequency) operates in the 300 MHz to 3 GHz range. It is commonly used in environments with many physical barriers and dense population areas.
The difference in their frequency range directly impacts their performance in terms of range, signal penetration, and ideal application scenarios.
Key Differences Between UHF and VHF
1. Range and Signal Penetration
- VHF: VHF signals travel farther in open spaces and are ideal for outdoor communications where there are few obstacles like buildings or dense foliage. However, VHF struggles in urban environments or indoors, as it does not penetrate solid objects (such as walls) as well as UHF.
- UHF: UHF signals have a shorter range in open spaces but excel in urban and indoor environments. UHF waves can penetrate walls, buildings, and other obstructions more effectively than VHF, making it the better option for communication in densely populated or built-up areas.
2. Antenna Size
- VHF: VHF radios require longer antennas because of their lower frequency. While this isn’t an issue for large, fixed radios or base stations, it can be a consideration for portable devices where size and weight matter.
- UHF: UHF radios use shorter antennas due to their higher frequency. This allows for more compact and portable devices, which is an advantage in industries where mobility is key, such as construction or event coordination.
3. Interference and Clarity
- VHF: VHF is more prone to interference from electronic devices and reflective surfaces, especially in urban areas. Its larger wavelength can also result in interference caused by signal reflection, which can degrade audio quality.
- UHF: UHF is less likely to be impacted by interference from other electronic equipment, making it ideal for use in modern industrial environments. UHF also offers better clarity in short-range communications within urban settings or inside buildings.
4. Channels and Availability
- VHF: With fewer available channels, VHF bands can be more crowded in specific regions or industries. This is particularly the case in busy environments where many devices share the same frequencies.
- UHF: UHF radios offer a broader range of available channels, making them a better choice in environments where multiple radios are used simultaneously, such as business complexes, hospitals, or construction sites.
5. Application Suitability
-
VHF: VHF radios are ideal for wide, open areas where obstacles are minimal. Common use cases include:
- Maritime communication: VHF radios are standard on boats and ships due to their superior range over water.
- Aviation: Aircraft communication relies heavily on VHF due to its ability to travel long distances in open airspace.
- Rural or outdoor areas: Whether you're working on a farm or coordinating at an outdoor event, VHF radios excel when there’s less interference from physical obstructions.
-
UHF: UHF radios are suited for environments where communication must navigate around many barriers. Typical use cases include:
- Urban environments: In cities with many buildings, UHF radios are superior because of their ability to penetrate walls and obstacles.
- Indoor settings: Warehouses, factories, and large office complexes benefit from UHF radios, which can cut through interference and physical structures.
- Security and construction: Workers in security or construction often prefer UHF for clear communication, even in dense, signal-blocking environments.
6. Cost Considerations
- VHF: Typically, VHF radios are more affordable, primarily because the technology has been around longer and is simpler to manufacture.
- UHF: UHF radios tend to be slightly more expensive due to their complexity and higher demand in professional environments, though this price gap has been shrinking.
When to Choose VHF or UHF?
Choosing between UHF and VHF largely depends on the specific environment in which you plan to use your radio. Here’s a quick guide to help you decide:
-
Choose VHF if:
- You’re operating in wide-open spaces like rural areas, over water, or in clear-air environments.
- You need long-range communication without many physical obstructions.
- You’re working in maritime, aviation, or other outdoor industries where long-distance communication is key.
-
Choose UHF if:
- You’ll be working in urban areas or indoors where signal penetration is critical.
- You need communication that can navigate obstacles like walls and buildings.
- You’re in industries like construction, security, event coordination, or healthcare, where clarity and reliability in dense environments are essential.
Conclusion
Both UHF and VHF radios serve essential roles in modern communication, but the best choice depends on your specific needs and environment. VHF is the go-to for long-range, open-area communication, while UHF excels in overcoming physical barriers in urban and indoor settings. Understanding these differences will help you make the right choice, ensuring clear, reliable communication no matter where your work takes you.
